home >> products >> wood working router W1325

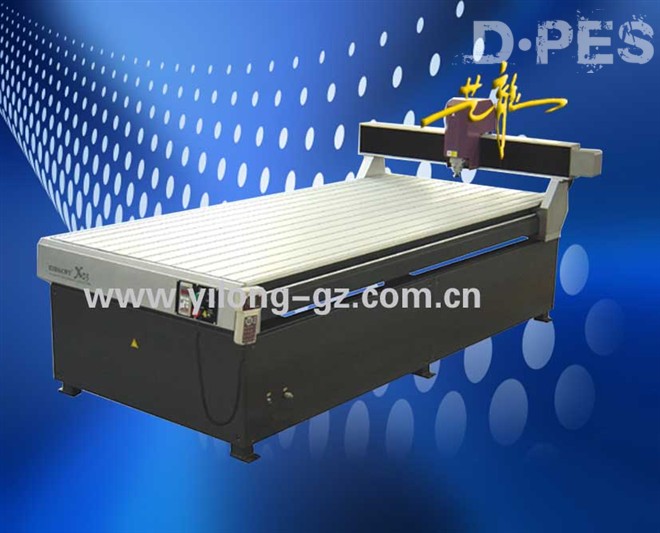

wood working router W1325

Product Details:
Model:
w1325
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets per Month
Delivery Time:
3~5
Packaging:
WOODEN CASE

Detailed Product Description

Specification
Model
W1325
X.Y axis motion
1300mm (X)x 2500mm (Y)
Z axis motion
170mm
Table size(X/Y)
1400mm (X)x 3040mm(Y)
Max.speed
18000mm /min
Max.working speed
10000mm /min
Resolution
0.0125mm
Repeat resolution
0.05mm
Max.feeding height
170/200mm
Processor
DSP/frequency 100MHZ
Interface
USB1.1
Flash memory
32MB
File Type
HP-GL/G-Code
Computer OS
Windows98/2000/XP
Power supply
AC220V/AC110V
Power consumption(exclude spindle)
1900W
Spindle
2500W Air cooling
Spindle rotary speed
0 to 18000 rpm
Weight
1200 kg
Operating Temperature
5 to 40 °C (41 to 104 °F )
Operating Humidity
35 to 80% (non-condensing)
