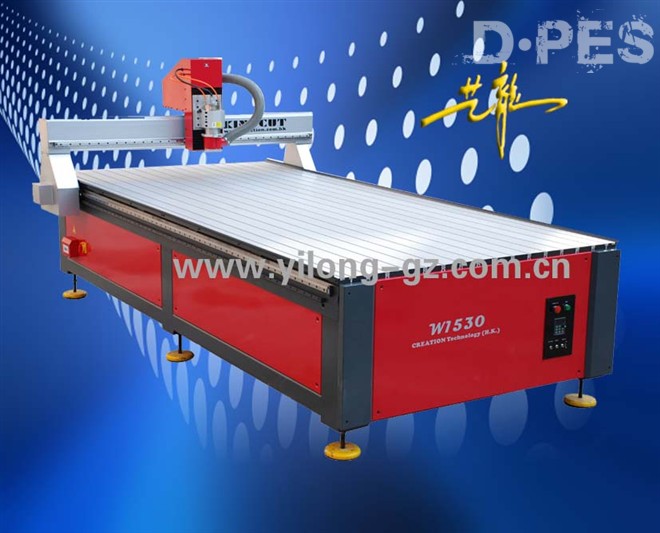

wood working router W1530

Product Details:
Model:
W1530
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Payment Terms:
T/T,Western Union,MoneyGram,Other
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets per Month
Delivery Time:
3~5
Packaging:
wooden case

Detailed Product Description

Options:
1. Vacuum Pump
2. Vacuum Hold down Table
3. Automatic Tool Changer
4. Dust Collector
5. Multiple Spindle
4. Rotationg Axis

 Model
 W1530
 WS1530
 X.Y axis motion
 1500mm (X)x 3000mm (Y)
 Z axis motion
 170mm
 Table size(X/Y)
 1600mm (X)x 3540mm (Y)
 Drive System
 X, Y axis : Rack and Pinion / Z axis : Ball Screw
 Max.Moving Speed
 15M/min
 Max.Engraving Speed
 12M/min
 Max.Feeding Height
 180mm
 Repeatability
 0.05mm
 Driving System
 Stepping motor
 AC Servo motor
 Resolution
 0.00727mm
 Controller
 VDS III (DSP 160MHz)
 File Type
 HP-GL, G-Code
 Computer OS
 Windows98/2000/XP
 Power Supply
 3 Phase 380V/50Hz
 Spindle
 3500W Air cooling
 Spindle rotary speed
 0 to 18000 rpm
 External Dimension
 / mm (W)x / mm (D)x / mm (H)
 Weight
 / kgs
 Operating Temperature and humidity
 5 to 35 °C / 35 to 70% (non-condensing
