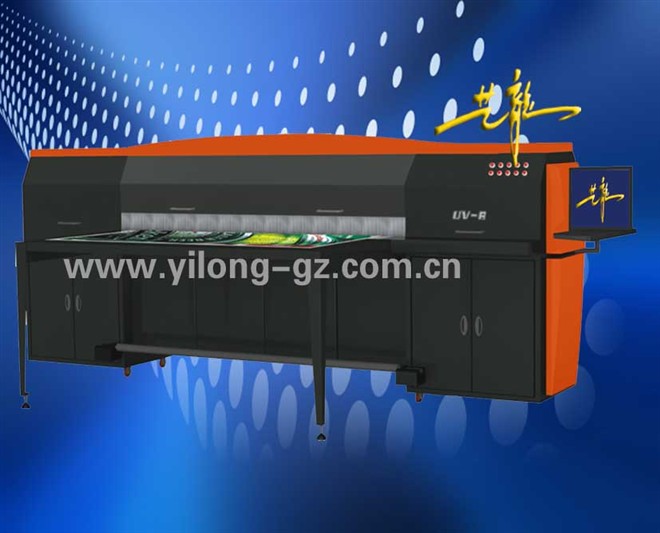

Yilong UV series UV flatbed printer (YL-UV2500UVA 2.50M):
Adopts Japanese seiko print heads, double servo drivers, 15cm max printing height. Realize the formless, non-contacting, and real-time printing on different kinds of sheet materials and roll materials, such as KT board, PVC board, plexiglass, glass, ceramic, metal, and leather etc. It replace the roll of traditional screen printing technology, and brings to customers the individualized, small-lot, various, and multicolored products, with the output features of speediness, high efficiency and flexibility guaranteed.
Product Table
|
Model:
|
YL-2500UVA
|
|
Class:
|
SKUVA series
|
|
Print Technology:
|
Drop-on-demandPiezo electric
|
|
Print head:
|
4/5/7/10(spt255)
|
|
Printing width:
|
2.50M
|
|
Printing Height:
|
5cm
|
|
Resolution:
|
1440dpi max
|
|
Speed:
|
2pass 42m/h ;4pass 28m/h ;6pass 12m/h
|
|
Locating mode:
|
Raster /servo
|
|
Color:
|
CMYKWLCL M
|
|
Media type:
|
3.2M
|
|
Media handle:
|
Roll to roll Sheet to sheet
|
|
Media type:
|
corrugated,foam ore,gatorboard;sintra(PVC), eramic tiles,glass,plexiglass, wood, sheet metal, paper,vinlys, dhesive back vinyls, fabrics
|
|
Drying system:
|
Uv lamp
|
|
File format:
|
TIFF,JPEG,Postscript 3,EPS,PDF
|
|
Working process:
|
Printmon software for windows xp
|
|
RIP software:
|
Photoprint /maintop
|
|
Power supply:
|
50hz/60hz 220v(10%)20A
|
|
Working environment:
|
(Temperature )18-26(Humidity )40%-70%
|
|
Dimension:
|
4.5m*1.6m*1.4m
|
|
Weight:
|
1200KG
|
|
|
|
|
The above print speed based on spt255 print heads
|
|
|
|
|
Heating system: Both front and back heater
|
|
Media Feed-in and Take-up: infrared light controlled automatically media feed-in and take-up system
|
|
Print head cleaning: Positive pressure, suction double functions
|
|
Ink supply system: Germany KNF ink supply system, Japanese negative pressure system.
|
